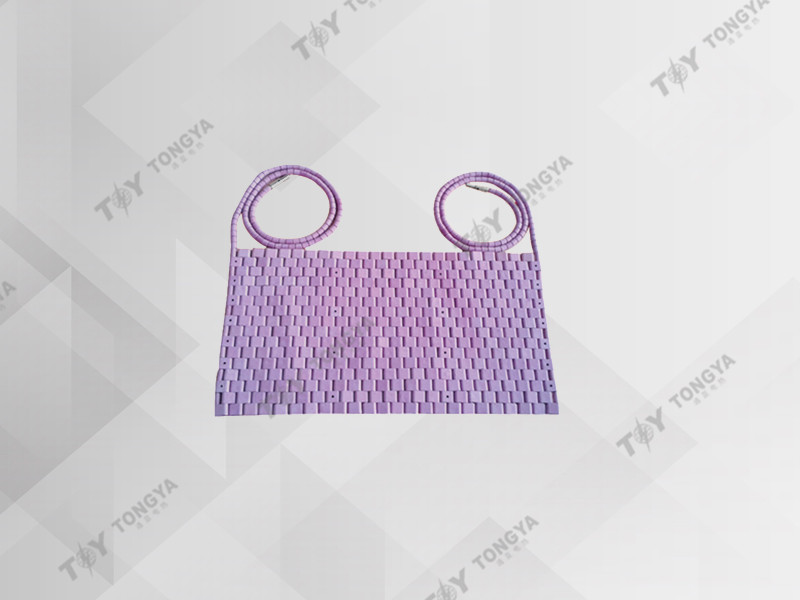

履带式陶瓷加热器

  • 所属分类:陶瓷加热器

  • 点击次数:
  • 发布日期:2023/06/30
  • 在线询价
  • 详细介绍

履带式陶瓷加热器是采用强度高,热辐射性能好的氧化铅陶瓷元件作绝缘材料,用镍铬丝缆作发热体,穿接好的加热器可以是矩形或三角形。镍铬丝缆与导线采用新工艺焊接,焊接的接头全部埋入陶瓷元件内绝缘可靠,陶瓷加热器与控制设备配套即成为完整的热处理系统,它们的连接采用专用接插件,并可根据工件与控制设备的距离配置接长导线。长度尺寸可以灵活改变制作的履带式陶瓷加热器。


特点

1.具有绕性,如加热容器或管道时,可弯曲成弧形或圆形包复在表面加热,如加热大型工件,局部可采包复形式,大面积工作可采用平铺复盖形式。此外能适合各种几何形状工件的加热。

2.工作温度高,升温快,热效率高,无污染,加热均匀准确,可以实现自动控制。

3.机械强度高,热态绝缘性能好,与被加热物体接触面大,使用寿命长。

4.安装,维修方便,使用费用低,即使内部发热材料损坏,而外部的陶瓷器件仍可回用。长度尺寸可以灵活改变制作的履带式陶瓷加热器,应视工件的几何形状,壁厚及热处理工艺选择相应的规格,下表仅列部分规格。


应用:主要用于塑料工业注塑机、挤出机和吹塑机的加热,同时也可用于反应釜、熔体管道等化工领域的加热。

结构:采用Ni80Cr20电阻丝插入陶瓷内孔,整个加热体柔软可塑,升温迅速,加热均匀,节能及较长的使用寿命。金属外壳采用不锈钢板或镀铝钢板制作。

技术参数:工作温度可达760℃,功率密度可高至8w/cm2。陶瓷加热圈的直径为40mm,直径大于600mm时,应分成2-8个弧段加热,采用压力弹簧夹紧。加热器的宽度为18mm,以7.5mm为进阶(18、25.5、33、40.5、48mm……)宽度不应大于500mm,加热体的厚度为12mm,如需加保温层,加热体的厚度会根据保温层厚度增大,请考虑安装空间。


电源接线方式

1.插头式接线(*大20A);

2.接线盒式接线(可多相固定连接);

3.高温线引出式接线(屏蔽耐热纯镍导线)。


It is mainly applied to heating the plastic injection molding machine, extruding machine and blowing machine. Meantime, it also can be used to heat reaction kettle, melt pipe, etc in chemical industry.

Structure

Ni80Cr20 resistance wire is inserted into ceramic inner hole. The whole heating body is soft & mouldable, energy-saving and durable. Furthermore, it is heated up quickly and evenly. The metal shell is made of stainless steel plate or galvanized steel plate.

Technical Parameter

The working temperature can be up to 760℃  and the power density 8w/cm2. The minimum diameter of ceramic heating ring is 40mm.

When the diameter is larger than 600mm, the ring, clamped by pressure spring, should be separated int0 2-8 segmental arc to be heated. On the other hand, the minimum width of the heater is 18mm and the maximum width of that should not be more than 500mm, increasing by 7.5mm (1 8,25.5,33,40.5,48mm...). The thickness of the heating body is 12mm. If adding thermal insulation layer, the thickness of the heating body increases accordingly. Please take installation space into consideration.


履带式陶瓷加热器
